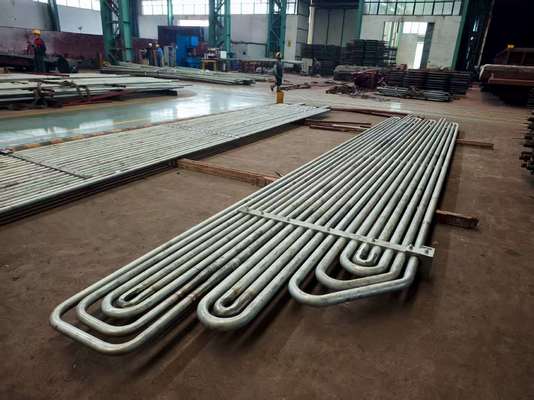

Natural Circulation Superheater Reheater for Power Station Boilers
Подробная информация о продукте
| Тип: | Естественная циркуляция | Приложение: | Поддержка котла, трубы котла, нагревательный элемент |
|---|---|---|---|
| Материал: | Нержавеющая сталь | Использование: | Промышленный, электростанция, электрическая станция тепловой мощности/боилер станции |
| Цвет: | Настроенный | Топливо: | Биомасса, отходы |
| Осмотр: | Осмотр ASME | Стиль: | Горизонтальные и вертикальные |
| Выделить |
natural circulation superheater,power station boiler reheater,superheater reheater with warranty |
||
Описание продукта
| Attribute | Value |
|---|---|
| Type | Natural Circulation |
| Application | boiler maintaince, Boiler Pipe, Heating element |
| Material | Stainless steel |
| Usage | Industrial, Power Station, Thermal power plant/station boiler |
| Color | Customized |
| Fuel | Biomass, Waste |
| Inspection | ASME Inspection |
| Style | Horizontal and Vertical |
Superheater handles saturated steam; reheater processes partially expanded steam.
Use for heating saturated steam, steam temperature could be up to 900 degree C.
Superheater Capacity Upgrades to Increase Power Generation
Send us required technical data, such as steam capacity, pressure, required temperature etc. We will design accordingly.
| Type | Advantages | Disadvantages | Supporting method |
|---|---|---|---|
| Pendant-type | 1. Firm structural support | 1. Flow blockage by condensed steam 2. Needs a slow restart to purge the water that accumulates in the bottom. |
supported from above |
| Inverted-type | 1. Proper drainage of the condensed steam | 1. Lack the structural rigidity, especially in high speed gas flow | Supported from below |
| Horizontal-type | 1. Proper drainage 2. Good structural rigidity. |
1. They do not view the flame directly so they are mainly from the convective type | Usually supported in the vertical gas ducts parallel to the main furnace. |
- Principle of superheater is similar to steam generating tubes of boiler.
- The hot gases at high temperature sweep over superheater tubes and raise the temperature of steam which magnitude depends upon exit gas temperature leaving the superheater and gas velocity.
